Settlement utilization
The Settlement utilization design result shows the utilization from the settlement check of foundation slabs.
Settlement utilization is available for:
- Foundation slab
Result selection
Settlement utilization is based on load combinations only – load groups are not available for foundation design results. Select the specific load combination.
Result display

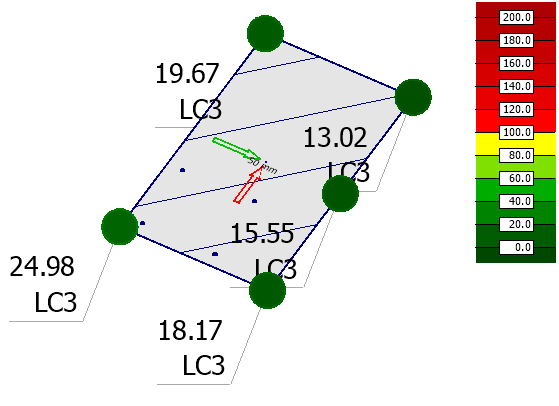

Settlement utilization uses the Colour palette display type. Because it is a point-type result, the Others tab of the Display options dialogue includes an additional Symbol group, with Point size as its only setting.
