Stress components by internal force

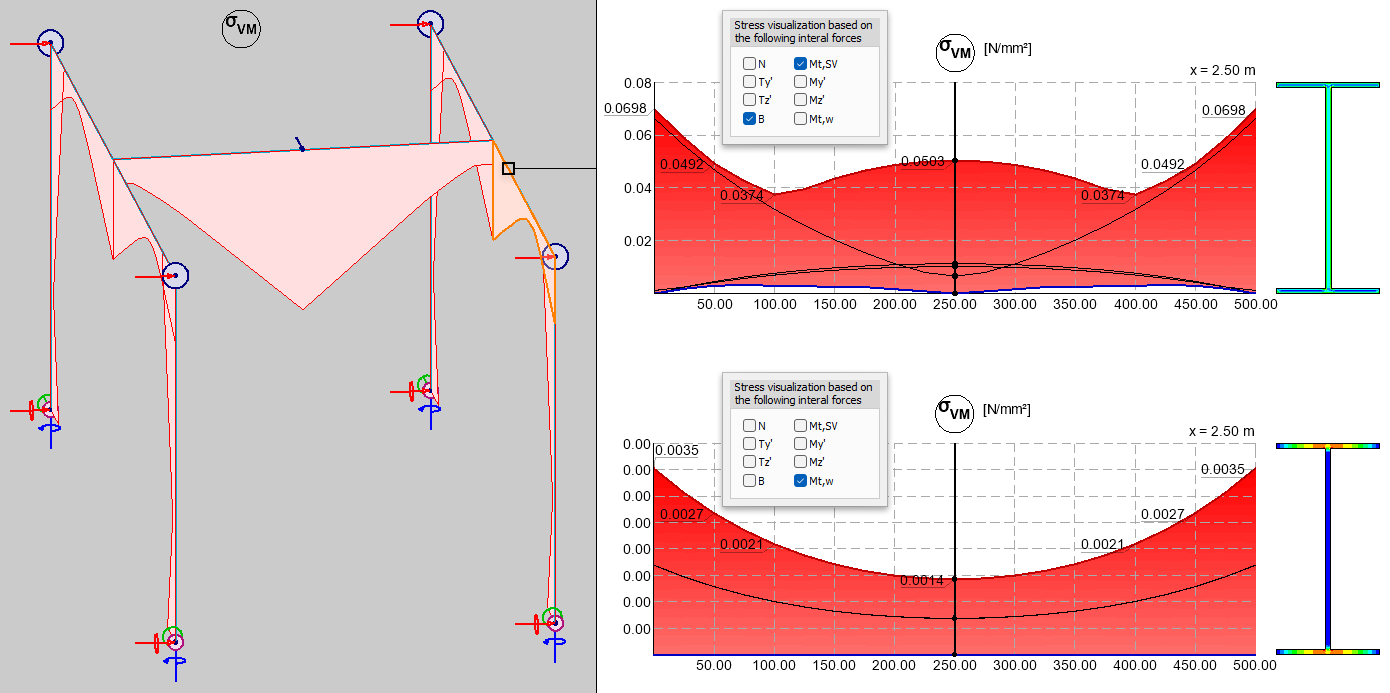

As a new feature, FEM-Design 25 allows users to evaluate stress components in bar elements not only for the total combined action, but also separately by internal force type.
This makes it possible to directly inspect stresses arising from individual contributions. For example, in 7DoF beam elements, stresses originating from bimoment or torsional moment effects can be reviewed independently or in combination.
This enhancement supports more transparent result interpretation and facilitates advanced verification and documentation workflows.
